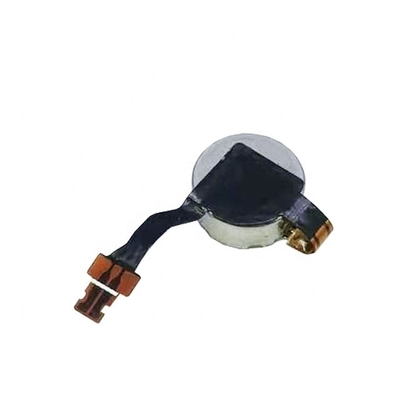

Totally enclosed 0825 8*2.5mm linear drive motor using long life LRA linear motor vibration motor

50 Pieces
MOQ
$1.20(50 - 499 pieces) $1.10(500 - 999 pieces) $0.90(>=1000 pieces)
preço
Totally enclosed 0825 8*2.5mm linear drive motor using long life LRA linear motor vibration motor
Características Galeria Descrição de produto Peça umas citações
Características
Especificações
Model Number: STF-0825R
Warranty: 3months-1year
Type: Micro Motor
Vibration direction: Z axis
size: 8*2.5MM
AC Voltage: 1.8 V RMS AC SINE WAVE, AC2.0V
rated current: 90 mA Max
response time: 40ms Max
falling time: 40 ms Max
life: 2S on,1S off,1 million cycles
Phase: Single-phase, Single-phase
Protect Feature: Totally Enclosed, Drip-proof
Efficiency: IE 2
Frequency: 235±10 Hz
Informação básica
Model Number: STF-0825R
Condições de Pagamento e Envio
Packaging Details: Standard Export Packing
Descrição de produto
Product Description
Model
STF-0825R
size
Φ8*2.5mm
Rated Voltage
1.8V RMS AC SINE WAVE
operating voltage
0~1.85V RMS AC SINE WAVE
frequency
235±10 Hz
rated current
90 mA Max
vibration
≥1.0 G @100g jig
raising time
40ms Max
falling time
40 ms Max
life
2S on,1S off, 1 million cycles
terminal resistance
22±4Ω
insulation resistance
 1 MΩ Min
Product Application:
Micro coin vibration motor is widely used in dental equipment, beauty products, mobile phone, pager, personal care, health careequipment, massage device, massage stick, eye massage device, body massage device, vibrator, etc.
product usage
Recommend Products
Packing & Delivery
Standard export packing
FAQ
1.Q: Are these motor's parameter from the above list can be modified ?
A: Yes, motor's parameter can be customized. We can modify the rotation diection, motor's working voltage, lead wire length, leadwire matrial, rated speed, torque etc, and motor's shaft dimension can be modified too. We are pleased to make those modification,
the more details you provide, the more fluent our cooperation will be.
2.Q: How to order?
A:Please send us your purchase order by Email or call me, then make quotation according to your order, after confirm, we can makeyou Performa invoice under your request.
3.Q: Sometimes I don't know the exact required parameter, how should I choose a suitable model ?
A: We can make some suggestions as long as you provide your specific requirement. We need to know what kind of product will bethis model used for ? And what does the working condition look like (duty cycles and load status)? And how long is the motor'sexpected lifetime ? etc. Then we can a make full assessment according to that.
4.Q:Is it possible for you to develop new motors if we provide the tooling cost?
A: Yes. Please kindly share the detailed requirements like performance, size, annual quantity, target price etc. Then we'll makeour evaluation to see if we can arrange or not.
5.Q:Can I get some samples first? How soon can I get the samples?
A: Yes, we can make samples, but normally sample is not for free (sample fee is charged varying from different places). And thesample making time depends on different types, for some small motor types( 3-10days is possible), while some gearbox motor shouldbe about 25days more or less. Additional, there will be about extra 2-3 days for the delivery time, and the shipping cost is notfor free too.
