Casa /Produtos/Motor de vibração do telefone/Home Appliance Leader Supplier 10*3mm Mini Electric Motor 3v Mobile Phone DC Motor

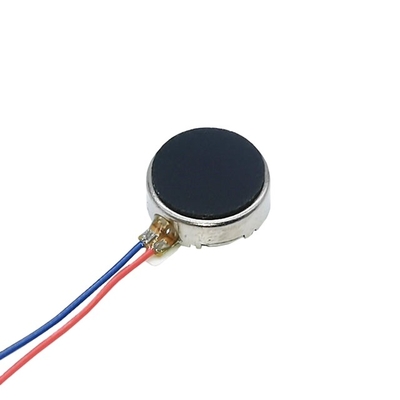

Home Appliance Leader Supplier 10*3mm Mini Electric Motor 3v Mobile Phone DC Motor

1000 Pieces
MOQ
$0.46(1000 - 4999 pieces) $0.43(5000 - 19999 pieces) $0.41(>=20000 pieces)
preço
Home Appliance Leader Supplier 10*3mm Mini Electric Motor 3v Mobile Phone DC Motor
Características Galeria Descrição de produto Peça umas citações
Características
Especificações
Model Number: STF-1030R
Warranty: 3months-1year
Type: Micro Motor
Customized: Yes
Rated Speed (r/min): 10000
Rated Power: 0.02
Nominal Voltage: 3
Application: Home Appliance
Number of Poles: 1
Size: 10mm
Motor height: 3.0mm
Noise: Low Noise Level
vibration: 0.8G
direction of rotation: clockwise
insulation resistance: 10 MΩ Min
lnsulation Resistance: 10 ohm
response time: about 80mS
wire length: Customized
Construction: Permanent Magnet
Informação básica
Model Number: STF-1030R
Condições de Pagamento e Envio
Packaging Details: Standard export packing
Supply Ability: 1000000 Piece/Pieces per Month
Descrição de produto
Products Description
Rated Voltage
dc 3 v
Operating Voltage
dc2.5-3.3 V
Rotation Direction
CW
The use of temperature range
10℃~60℃≤60%RH
Rated Current
80mA
Rated speed
10000 ± 1500 rpm/min
Starting Voltage
1.1V DC
Thickness
2.7± 0.2mm
Insulation Resistance
10MΩ
Weight
About 1.0 g
Product Application：
Widely used in dental equipment, beauty products, mobile phone, pager, personal care, health careproducts equipment, massagedevice, massage stick, eye massage device, body massage device, vibrator, etc.
product usage
Recommend Products
Packing & Delivery
Standard export packing
FAQ
1.Q: Are these motor's parameter from the above list can be modified ?
A: Yes, motor's parameter can be customized. We can modify the rotation diection, motor's working voltage, lead wire length, leadwire matrial, rated speed, torque etc, and motor's shaft dimension can be modified too. We are pleased to make those modification,the more details you provide, the more fluent our cooperation will be.
2.Q: How to order?
A:Please send us your purchase order by Email or call me, then make quotation according to your order, after confirm, we can makeyou Performa invoice under your request.
3.Q: Sometimes I don't know the exact required parameter, how should I choose a suitable model ?
A: We can make some suggestions as long as you provide your specific requirement. We need to know what kind of product will bethis model used for ? And what does the working condition look like (duty cycles and load status)? And how long is the motor'sexpected lifetime ? etc. Then we can a make full assessment according to that.
4.Q:Is it possible for you to develop new motors if we provide the tooling cost?
A: Yes. Please kindly share the detailed requirements like performance, size, annual quantity, target price etc. Then we'll makeour evaluation to see if we can arrange or not.
5.Q:Can I get some samples first? How soon can I get the samples?
A: Yes, we can make samples, but normally sample is not for free (sample fee is charged varying from different places). And thesample making time depends on different types, for some small motor types( 3-10days is possible), while some gearbox motor shouldbe about 25days more or less. Additional, there will be about extra 2-3 days for the delivery time, and the shipping cost is notfor free too.
