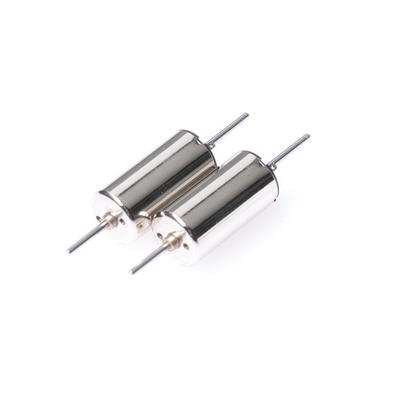

816 waterproof high quality dual axis 12v dc motor for r/c and toys

100 Pieces
MOQ
$1.43(>=100 Pieces)
preço
816 waterproof high quality dual axis 12v dc motor for r/c and toys
Características Galeria Descrição de produto Peça umas citações
Características
Especificações
Warranty: Other
Model Number: WFMD0816DSL305R00(MD0816DSV12.0S13500T)
Usage: BOAT, Car, Electric Bicycle, FAN, Home Appliance
Type: Micro Motor
Torque: 15.77 g.cm
Construction: Permanent Magnet
Commutation: Brush
Protect Feature: Waterproof
Speed(RPM): 13500 rpm
Continuous Current(A): 4 mA
Efficiency: IE 2
Operating Voltage: 3.0~12.0 V
Rated Voltage: 12V
No Load Speed: 13500 rpm
No Load Current: 4 mA
Max. Efficiency: 72%
Max.Output: 0.54 w
Stall Torque: 15.77 g.cm
Stall Current: 192 mA
Terminal Resistance: 62.5 ohm
Starting Voltage: 0.8 V
Certificação: ce, RoHS
Informação básica
Certificação: ce, RoHS
Model Number: WFMD0816DSL305R00(MD0816DSV12.0S13500T)
Condições de Pagamento e Envio
Packaging Details: Packaging :Polystyrene / Hard paper box / water proof layer
Descrição de produto
Typical Application

0816 8mm diameter dual shaft Micro DC Driving Motor is widely used in:

Toy Trains, Toys and Models, Servo Control Devices, Robots, Micro-Controllers, Artificial Intelligence Devices, Medical Devices.
Company Profile
Yichang Wingfong Industry & Trade Co., Ltd. is a national high-tech enterprise specializing in the research, development and manufacturing of hollow-core (coreless) permanent magnet DC micro motors and various core motors certified by SIRA and Rohs .

We provide professional design, stable quality, reasonable price, timely delivery and sincerely service to every customer!
Our Service
As the special and professional manufacturer of Micro Motor in China，
We Supply
Driving or Vibrating Micro Motors
&
Customized motors
Motor Paramenters
№
Item
Specifications
№
Item
Specifications
1
Rated Voltage
12V DC
11
Rated Load
As Customized
2
Operating Voltage
3.0~12.0V DC
12
Starting Voltage
0.8V DC
3
Rotation Direction
CW
13
Terminal Resistance
62.5 ±5%Ω
4
Operating Conditions
-10℃～60℃≤60%RH
14
Insulation Resistance
10MΩ
5
No Load Current
10 mA Max
15
Appearance
No any damage
6
No Load speed
13500 ± 12% Rpm/min
16
Weight
About 3.8g
7
Rated Current
/
17
Clearance between shafts
0.05~0.30mm
8
Rated Speed
/
18
Torque Constant
83.9 g.cm/A
9
Stall Current
192 mA
19
Speed Constant
1141.62 Rpm/V
10
Stall Torque
15.77 g.cm
20
Speed/Torque Constant
850.42 Rpm/g.cm
Product Show
Shipping & Packing
Packaging Details:
Polystyrene / Hard paper box / water proof layer
We have reliable resources to assure safe transportation to customers.
FAQ
Q: Sometimes I don't know the exact required parameter，how can I choose a suitable model?
A: We will make some suggestion if you provide your specific requirement on size and performance. Or send us samples or application directly. Then we will make full assessment accordingly.

Q: Can I get some samples first? How soon can I get the samples?
A: Yes, we can make samples, usually 3-10 days is possible to send out.

Q: Is it possible for you to develop new motors if we provide the tooling cost?
A: Yes. Please kindly share the detailed requirements like performance, size, annual quantity, target price etc. Then we'll make our evaluation and confirm if we can arrange or not.
